Cluster Lens Simulation Interface

This notebook shows the current progress in the group and cluster scale simulations.

Implemented:

• NFWCluster deflector class: a NFW halo and subhalos that can be any deflector, accesible through the Deflector interface

• Integration with Lens interface to simulate lens related quanities.

Not (yet) implemented:

• Draw halo and subhalo population

• Catalog of cluster halos and cluster members

• Integration with LensPop

Setup

from slsim.Deflectors.deflector import Deflector
from slsim.lens import Lens
from slsim.lens_pop import LensPop
from slsim.image_simulation import simulate_image, rgb_image_from_image_list

from astropy.cosmology import FlatLambdaCDM

import numpy as np
import matplotlib.pyplot as plt
from astropy.table import Table, vstack, hstack
from astropy import units as u
from lenstronomy.Util import param_util
from scipy.spatial.distance import cdist

from matplotlib.patches import Ellipse

Generate a population of sources and elliptical deflectors

np.random.seed(0)

# define a cosmology
cosmo = FlatLambdaCDM(H0=70, Om0=0.3)

# define a sky area
sky_area = u.Quantity(value=0.1, unit="deg2")


# define limits in the intrinsic deflector and source population (in addition to the skypy config
# file)
kwargs_deflector_cut = {"band": "g", "band_max": 26, "z_min": 0.01, "z_max": 2.5}
kwargs_source_cut = {"band": "g", "band_max": 26, "z_min": 0.1, "z_max": 5.0}

# run skypy pipeline and make galaxy-galaxy population class using LensPop
gg_lens_pop = LensPop(
    deflector_type="elliptical",
    source_type="galaxies",
    kwargs_deflector_cut=kwargs_deflector_cut,
    kwargs_source_cut=kwargs_source_cut,
    kwargs_mass2light=None,
    skypy_config=None,
    sky_area=sky_area,
    cosmo=cosmo,
)

Basic Example

This example shows the implemented features. It generates a lens from an slsim sampled source, and a halo + subhalos with manually set parameters. It is not intended to be a realistic cluster.

Set seed for reproduction

np.random.seed(3)

Halo parameters:

halo_dict = {
    "halo_mass": 1e14,
    "concentration": 5,
    "e1_mass": 0.1,
    "e2_mass": -0.1,
    "z": 0.42,
}

A random sample of deflectors as subhalos:

subhalos_table = Table.read("../../tests/TestData/subhalos_table.fits")
subhalos_table

Table length=10

z	M	coeff	ellipticity	physical_size	stellar_mass	angular_size	mag_g	mag_r	mag_i	mag_z	mag_Y	vel_disp	e1_light	e2_light	e1_mass	e2_mass	n_sersic	center_x	center_y
				kpc		rad
float64	float64	float64[5]	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64
0.40961161750606623	-17.74659351948313	0.014461312431650886 .. 0.0017553671438891554	0.2910638099896307	0.6126468465532885	6134707325.985248	5.449207115062017e-07	24.980052525073667	23.595940832611404	23.07059085953089	22.76766104854414	22.57663477819682	238.6881226614444	-0.04528497553751	0.1416914374289071	-0.0019891604503226743	0.026829555556416532	4.0	2.1991997927160987	3.919514530899428
0.4116468964498543	-21.33484897934431	0.23285635798664925 .. 0.0006941668698218637	0.15174652869004476	3.7017292439367973	240837649679.1357	3.282729405263374e-06	21.567499195041215	20.026445329337342	19.363187222380752	18.981620021271375	18.75254269621525	275.0041773084429	-0.05236187054892784	0.05551789525462122	-0.06511420472541432	0.08282581103144096	4.0	0.8693181053414824	0.8279203242106586
0.357742197708797	-17.70016474314204	0.11749415182192821 .. 0.0009963705918894985	0.09247542465242468	0.22517235412009645	8172885735.947244	2.1789243925349325e-07	24.558320753535146	23.174654552345824	22.60350168788489	22.273007291380058	22.085215345311457	239.48534781261813	0.023416486644143208	0.03998480716073247	0.08818194961203064	0.2393539252201014	4.0	-1.4313058824457068	-1.2971386999655654
0.43321408312382476	-21.624890597703676	0.08464660764530811 .. 0.0009006445161237372	0.21060142972690385	2.3919434702572593	260035388352.9656	2.058095711291011e-06	21.000557844900243	19.926803223244768	19.33049856621807	19.010991686213686	18.79413875740036	276.91021844529143	0.10590581383265181	0.011186271676403	0.01235901177287892	0.0008661401605979852	4.0	0.5913335287465081	9.373582206571212
0.40664485199633355	-20.323923719919286	0.04239681022192635 .. 0.000642978918452646	0.3224955343138368	1.4049504867155502	82384629856.09811	1.2551227098076372e-06	22.470274300452132	20.990325400071697	20.39528372488079	20.065144547510236	19.87646729406098	256.2982137470725	-0.029037278604714677	0.1631091572224996	-0.01927975004064865	0.10069437796471338	4.0	7.369516112011384	5.00295994058848
0.4376178752381092	-18.7936006252479	0.14206729280250247 .. 0.0016625409960951707	0.1647023203467217	0.4254001095167009	20230857612.75885	3.6388064941698217e-07	24.21872306092851	22.799104546193014	22.146352378632578	21.79395982665163	21.565756843217763	243.85574045984882	-0.0754136386484834	0.03446838704341557	-0.018110945492180335	0.008948504939325357	4.0	-5.005510169566389	-2.681860992222449
0.4099796727538578	-16.512141575263364	0.030875540197497997 .. 0.0002203614733351139	0.08513893600336805	0.11686325540198512	2792649800.8751807	1.038882899755727e-07	26.39549320727873	24.83029836517223	24.182210285777888	23.840503093758993	23.65161860291757	236.99130742917959	-0.0424965956722835	0.003577249480990931	0.09694801706010811	-0.017100807340409214	4.0	7.644046541105355	9.268773948886318
0.4127768279274331	-15.721344032029277	0.07559942601411682 .. 0.00027449606564557876	0.26668668280998875	0.2985039673322858	1283273119.2410483	2.642817163990263e-07	27.04262960934578	25.65013657080857	25.022279241903632	24.68099549945051	24.48110194359954	235.93973169995965	-0.0382039211203908	0.1303179954461028	-0.016311796145999414	0.07570778350877454	4.0	16.833942804162128	-6.2521801083342154
0.43371538809999644	-19.906496833927086	0.1330919972384299 .. 0.0009832574915758423	0.08163712829655634	0.6388918586183057	46629527232.0393	5.493502154531822e-07	22.80636123567772	21.645474543240972	21.083604730434686	20.773945108716994	20.535144539362967	249.68829440839266	0.02535741704846566	0.032073851673849366	0.11267280486614065	0.16064388545998565	4.0	-3.0834953283783717	-6.801424536872165
0.4470202859737583	-21.25808349208964	0.03378577389732713 .. 0.000507403732677016	0.34214100047044205	2.381466544421677	219084869701.21854	2.012277977759689e-06	21.859885721418987	20.425021381344155	19.707747157772868	19.35273673247956	19.15103583581944	273.01372375012085	0.1640864088616454	0.06473208537573834	0.10843336276188861	0.052678427823703515	4.0	-4.136205681886929	3.5504779276895233

subhalos_list = [
    Deflector(deflector_type="EPL", deflector_dict=subhalo)
    for subhalo in subhalos_table
]
len(subhalos_list)

10

Initialize a ClusterLens object to combine the components into a Lenstronomy model.

Draw sources until find a valid lens

max_try = 100
i = 0
while i < max_try:
    source_dict = gg_lens_pop._sources.draw_source()

    cluster_lens = Lens(
        source_dict=source_dict,
        deflector_dict=halo_dict,
        deflector_kwargs={"subhalos_list": subhalos_list},
        deflector_type="NFW_CLUSTER",
        lens_equation_solver="lenstronomy_default",
        cosmo=cosmo,
    )
    i += 1
    if cluster_lens.validity_test(max_image_separation=50.0):
        print("valid!")
        break

valid!

cluster_lens.einstein_radius_deflector

21.033852434910667

Visualize the result

img_g = simulate_image(cluster_lens, "g", 200)
img_r = simulate_image(cluster_lens, "r", 200)
img_i = simulate_image(cluster_lens, "i", 200)
img_rgb = rgb_image_from_image_list([img_i, img_r, img_g], 2)
plt.imshow(img_rgb, origin="lower")
plt.show()

Example drawing redMaPPer cluster

Draw a cluster from DES redMaPPer catalog and assign an slsim deflector for each cluster member and a cluster-sized halo based in scaling relations.

This feature is not yet implemented in slsim, but is a possible way of making realistic cluster lenses.

Set seed for reproduction

np.random.seed(0)

redMaPPer cluster catalog

clusters = Table.read("../../data/redMaPPer/clusters_example.fits")
members = Table.read("../../data/redMaPPer/members_example.fits")

Draw a cluster as an example

cluster_id = np.random.choice(clusters["ID"])
cluster_data = clusters[clusters["ID"] == cluster_id][0]
members_data = members[members["ID"] == cluster_id]
members_data.sort("R")  # sort by distance to the center

cluster_id

209

_bcgs_ids = [cluster_data[f"ID{i}"] for i in range(4)]
_bcgs_iprobs = [cluster_data[f"PCen{i}"] for i in range(4)]
_bcgs_iprobs = np.array(_bcgs_iprobs) / np.sum(_bcgs_iprobs)
bcg_id = np.random.choice(_bcgs_ids, p=_bcgs_iprobs)
bcg_data = members_data[members_data["ObjID"] == bcg_id]

members_data["center_x"] = (members_data["RAJ2000"] - bcg_data["RAJ2000"]) * u.deg.to(
    u.arcsec
)
members_data["center_y"] = (members_data["DEJ2000"] - bcg_data["DEJ2000"]) * u.deg.to(
    u.arcsec
)

members_data = members_data[
    "ID", "ObjID", "PMem", "R", "center_x", "center_y", "gmag", "rmag", "imag", "zmag"
]
members_data.rename_columns(
    ["gmag", "rmag", "imag", "zmag"], ["mag_g", "mag_r", "mag_i", "mag_z"]
)

Draw some deflectors

n_deflectors = 5000
deflectors_table = []
for _ in range(n_deflectors):
    deflectors_table.append(gg_lens_pop._lens_galaxies.draw_deflector())
deflectors_table = vstack(deflectors_table)

Assign a deflector for each cluster member based on magnitude and color

def assing_similar_deflector(
    members_table, deflectors_table, cluster_z, cosmo=None, bands=("g", "r", "i", "z")
):
    mag_members = [members_table[f"mag_{b}"].data for b in bands]
    mag_deflectors = [deflectors_table[f"mag_{b}"].data for b in bands]
    dist_mod_members = (
        -5
        * np.log10(cosmo.luminosity_distance(cluster_z) / (10 * u.pc))
        * np.ones(len(members_table))
    )
    dist_mod_deflectors = -5 * np.log10(
        cosmo.luminosity_distance(deflectors_table["z"].data) / (10 * u.pc)
    )
    distance = cdist(
        np.stack([*mag_members, dist_mod_members], axis=1),
        np.stack([*mag_deflectors, dist_mod_deflectors], axis=1),
        metric="euclidean",
    )
    nearest_neighbors_indices = distance.argmin(axis=1)
    similar_deflectors = deflectors_table[nearest_neighbors_indices]
    return similar_deflectors

subhalos_table = assing_similar_deflector(
    members_data,
    deflectors_table,
    cluster_data["zlambda"],
    cosmo=cosmo,
    bands=("g", "r", "i", "z"),
)
subhalos_table = hstack(
    [subhalos_table, members_data["ID", "ObjID", "PMem", "center_x", "center_y"]]
)

plt.hist(subhalos_table["z"], bins="auto", label="deflectors")
plt.axvline(cluster_data["zlambda"], c="r", ls="--", label="cluster")
plt.xlabel("redshift")
plt.legend()
plt.show()

plt.scatter(members_data["mag_g"], subhalos_table["mag_g"], label="g")
plt.scatter(members_data["mag_r"], subhalos_table["mag_r"], label="r")
plt.scatter(members_data["mag_i"], subhalos_table["mag_i"], label="i")
plt.scatter(members_data["mag_z"], subhalos_table["mag_z"], label="z")
plt.plot(np.linspace(17, 27), np.linspace(17, 27), "k--")
plt.xlabel("member mag")
plt.ylabel("deflector mag")
plt.legend()
plt.show()

plt.scatter(
    members_data["mag_g"] - members_data["mag_r"],
    subhalos_table["mag_g"] - subhalos_table["mag_r"],
    label="g - r",
)
plt.scatter(
    members_data["mag_r"] - members_data["mag_i"],
    subhalos_table["mag_r"] - subhalos_table["mag_i"],
    label="r - i",
)
plt.scatter(
    members_data["mag_i"] - members_data["mag_z"],
    subhalos_table["mag_i"] - subhalos_table["mag_z"],
    label="i - z",
)
plt.plot(np.linspace(0, 3.5), np.linspace(0, 3.5), "k--")
plt.xlabel("member color")
plt.ylabel("deflector color")
plt.legend()
plt.show()

We have to assign a halo to the cluster. By now we set the halo mass and concentration by hand, the ellipticity is chosen based on the distribution of the subhalos.

Set the halo ellipticity from subhalo distribution, weighted by stellar mass:

cov_matrix = np.cov(
    np.stack([subhalos_table["center_x"], subhalos_table["center_y"]], axis=1),
    aweights=subhalos_table["stellar_mass"],
    rowvar=False,
)
eigenvalues, eigenvectors = np.linalg.eigh(cov_matrix)
largest_eigenvector = eigenvectors[:, np.argmax(eigenvalues)]
phi = np.arctan2(largest_eigenvector[1], largest_eigenvector[0])
q = np.sqrt(np.min(eigenvalues) / np.max(eigenvalues))
e1, e2 = param_util.phi_q2_ellipticity(phi, q)

Visualize the members distribution, along with an ellipse describing the shape of the halo

plt.scatter(
    subhalos_table["center_x"],
    subhalos_table["center_y"],
    s=subhalos_table["physical_size"] * 10,
    c=subhalos_table["stellar_mass"],
    cmap="Oranges",
)
plt.gca().add_patch(
    Ellipse(
        (0, 0), 400, 400 * q, angle=np.rad2deg(phi), facecolor="none", edgecolor="k"
    )
)
plt.xlabel("ra [arcsec]")
plt.ylabel("dec [arcsec]")
plt.show()

Halo NFW parameters, the mass and concetration are arbitrary:

halo_dict = {
    "halo_mass": 2e14,  # TODO: assign mass based on halo mass function + mass-richness relation
    "concentration": 5,  # TODO: set concentration from mass-redshift-concentration relation
    "e1_mass": e1,
    "e2_mass": e2,
    "z": cluster_data["zlambda"],
}

for k, v in halo_dict.items():
    print(f"{k}: {v:1.2e}")

halo_mass: 2.00e+14
concentration: 5.00e+00
e1_mass: 2.29e-01
e2_mass: 1.53e-01
z: 5.74e-01

Initialize the subhalos as deflectors

subhalos_list = [
    Deflector(deflector_type="EPL", deflector_dict=subhalo)
    for subhalo in subhalos_table
]
len(subhalos_list)

73

Initialize a ClusterLens object to combine the components into a Lenstronomy model.

Draw sources until find a valid lens

max_try = 100
i = 0
while i < max_try:
    source_dict = gg_lens_pop._sources.draw_source()

    cluster_lens = Lens(
        source_dict=source_dict,
        deflector_dict=halo_dict,
        deflector_kwargs={"subhalos_list": subhalos_list},
        deflector_type="NFW_CLUSTER",
        lens_equation_solver="lenstronomy_default",
        cosmo=cosmo,
    )
    i += 1
    if cluster_lens.validity_test(max_image_separation=100.0):
        print("valid!")
        break
assert cluster_lens.validity_test(max_image_separation=100.0)

valid!

cluster_lens.einstein_radius_deflector

8.821158724189685

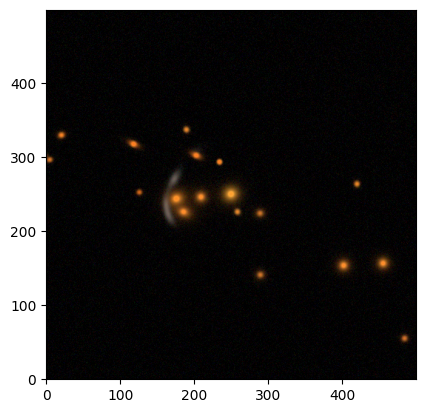

Visualize the result

img_g = simulate_image(cluster_lens, "g", 500)
img_r = simulate_image(cluster_lens, "r", 500)
img_i = simulate_image(cluster_lens, "i", 500)
img_rgb = rgb_image_from_image_list([img_i, img_r, img_g], 2)
plt.imshow(img_rgb, origin="lower")
plt.show()
