Validation of galaxy distribution¶
This notebook compare galaxy distribution from slsim with DC2 and Diffsky galaxy distribution in a 1 degree square sky area. To run this notebook, one need to download dc2 and diffsky galaxy catalog from following link: https://github.com/LSST-strong-lensing/data_public.
Please replace dc2 and diffsky paths in cell 8.
[1]:
import matplotlib.pyplot as plt
from astropy.cosmology import FlatLambdaCDM
from astropy.units import Quantity
from slsim.Pipelines.skypy_pipeline import SkyPyPipeline
from astropy.modeling.models import Linear1D, Exponential1D
import numpy as np
from astropy.table import vstack, Table
import pickle
import os
Define a cosmology and sky area¶
[2]:
# define a cosmology
cosmology = FlatLambdaCDM(H0=70, Om0=0.3)
# define a sky area
sky_area = Quantity(value=1, unit="deg2")

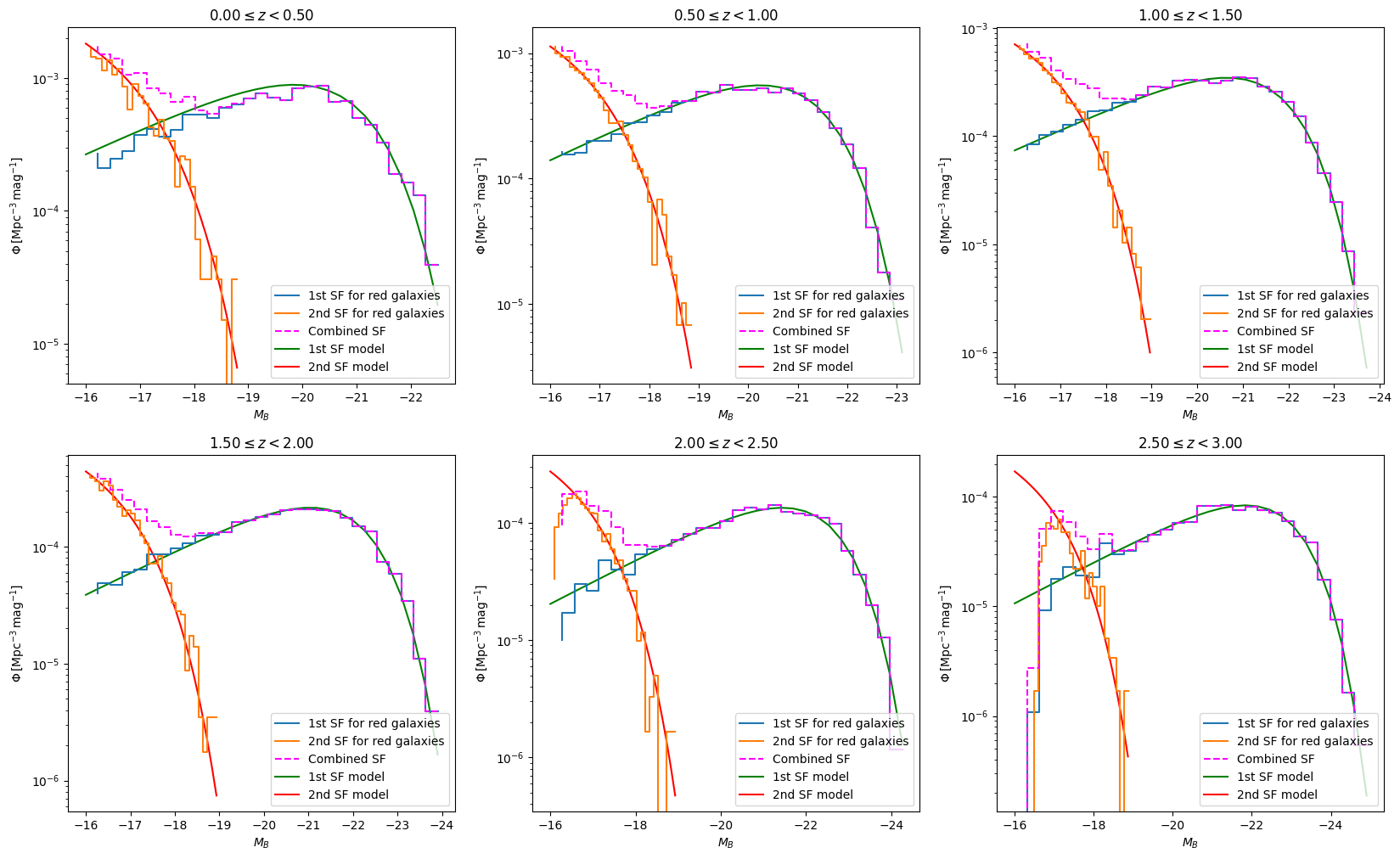

Plot Schechter functions¶
[4]:
m_star = Linear1D(-0.80, -20.46)
phi_star = Exponential1D(0.00278612, -1.05925)
alpha = -0.53
m_star2 = -17
alpha2 = -1.31
path = os.getcwd()
new_path = path.replace("docs/notebooks/validation_notebooks", "tests/TestData/")
pipeline_1 = SkyPyPipeline(
skypy_config=new_path + "lsst_like_test_1.yml",
sky_area=sky_area,
filters=None,
cosmo=cosmology,
)
red_galaxies_1 = pipeline_1.red_galaxies
redshift, magnitude = red_galaxies_1["z"], red_galaxies_1["M"]
# 2nd schechter function
pipeline_2 = SkyPyPipeline(
skypy_config=new_path + "lsst_like_test_2.yml",
sky_area=sky_area,
filters=None,
cosmo=cosmology,
)
red_galaxies_2 = pipeline_2.red_galaxies
redshift2, magnitude2 = red_galaxies_2["z"], red_galaxies_2["M"]
# combined schechterfunction
redshift3 = np.concatenate((redshift, redshift2))
magnitude3 = np.concatenate((magnitude, magnitude2))
fig, ((ax1, ax2, ax3), (ax4, ax5, ax6)) = plt.subplots(
nrows=2, ncols=3, figsize=(20, 12)
)
bins = np.linspace(-24.84408295574346, -14, 40)
bins2 = np.linspace(-19.1724664526037, -14, 30)
z_slices = ((0.0, 0.5), (0.5, 1), (1, 1.5), (1.5, 2), (2, 2.5), (2.5, 3))
for ax, (z_min, z_max) in zip([ax1, ax2, ax3, ax4, ax5, ax6], z_slices):
# Redshift grid
z = np.linspace(z_min, z_max, 100)
# SkyPy simulated galaxies
z_mask = np.logical_and(redshift >= z_min, redshift < z_max)
magnitude_bin = magnitude[z_mask]
bins = np.linspace(min(magnitude_bin), -16, 30)
dV_dz = (cosmology.differential_comoving_volume(z) * sky_area).to_value("Mpc3")
dV = np.trapz(dV_dz, z)
dM = (np.max(bins) - np.min(bins)) / (np.size(bins) - 1)
phi_first_red = np.histogram(magnitude[z_mask], bins=bins)[0] / dV / dM
z_mask2 = np.logical_and(redshift2 >= z_min, redshift2 < z_max)
magnitude_bin2 = magnitude2[z_mask2]
bins2 = np.linspace(min(magnitude_bin2), -16, 30)
dV_dz2 = (cosmology.differential_comoving_volume(z) * sky_area).to_value("Mpc3")
dV2 = np.trapz(dV_dz2, z)
dM2 = (np.max(bins2) - np.min(bins2)) / (np.size(bins2) - 1)
phi_second_red = np.histogram(magnitude2[z_mask2], bins=bins2)[0] / dV2 / dM2
z_mask3 = np.logical_and(redshift3 >= z_min, redshift3 < z_max)
dV_dz3 = (cosmology.differential_comoving_volume(z) * sky_area).to_value("Mpc3")
dV3 = np.trapz(dV_dz3, z)
dM3 = (np.max(bins) - np.min(bins)) / (np.size(bins) - 1)
phi_combined_red = np.histogram(magnitude3[z_mask3], bins=bins)[0] / dV3 / dM3
# Median-redshift Schechter function
L = 10 ** (0.4 * (m_star(z) - bins[:, np.newaxis]))
phi_model_z = 0.4 * np.log(10) * phi_star(z) * L ** (alpha + 1) * np.exp(-L)
phi_model = np.median(phi_model_z, axis=1)
L2 = 10 ** (0.4 * (m_star2 - bins2[:, np.newaxis]))
phi_model_z2 = 0.4 * np.log(10) * phi_star(z) * L2 ** (alpha2 + 1) * np.exp(-L2)
phi_model2 = np.median(phi_model_z2, axis=1)
# Plotting
ax.step(
bins[:-1],
phi_first_red,
where="post",
label="1st SF for red galaxies",
zorder=3,
)
ax.step(
bins2[:-1],
phi_second_red,
where="post",
label="2nd SF for red galaxies",
zorder=3,
)
ax.step(
bins[:-1],
phi_combined_red,
where="post",
ls="--",
label="Combined SF",
color="magenta",
zorder=3,
)
ax.plot(bins, phi_model, label="1st SF model", color="g")
ax.plot(bins2, phi_model2, label="2nd SF model", color="red")
ax.set_title(r"${:.2f} \leq z < {:.2f}$".format(z_min, z_max))
ax.set_xlabel(r"$M_B$")
ax.set_ylabel(r"$\Phi \, [\mathrm{Mpc}^{-3} \, \mathrm{mag}^{-1}]$")
ax.set_yscale("log")
# ax.set_xlim([-14, -24])
# ax.set_ylim([min(magnitude_bin), None])
ax.legend(loc="lower right")
ax.invert_xaxis()
plt.show()
Get galaxy distribution from SkyPyPipeline¶
[5]:
## For the red galaxies, this configuration uses combined Schechter
# function (magenta curve in above plot).
pipeline_double = SkyPyPipeline(sky_area=sky_area, filters=None, cosmo=cosmology)
## For the red galaxies, this configuration uses single Schechter
# function (blue curve in above plot).
pipeline_single = SkyPyPipeline(
skypy_config="lsst_like_old", sky_area=sky_area, filters=None, cosmo=cosmology
)
[6]:
## Let's draw red galaxies from these two different Schechter function.
red_galaxies_double = pipeline_double.red_galaxies
red_galaxies_single = pipeline_single.red_galaxies
[7]:
# These are all galaxies from from two cases.
single_total = vstack([pipeline_single.red_galaxies, pipeline_single.blue_galaxies])
single_total = single_total[(single_total["z"] < 3.01) & (single_total["mag_i"] < 30)]
double_total = vstack([pipeline_double.red_galaxies, pipeline_double.blue_galaxies])
double_total = double_total[(double_total["z"] < 3.01) & (double_total["mag_i"] < 30)]

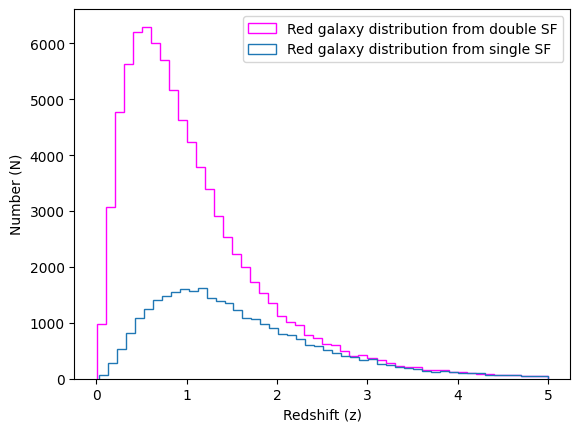

Comparision of red galaxy distribution with¶
single and double Schechter function.¶
[8]:
## Plot red galaxy distributions from single Schechter function and double Schcheter
# functions.
plt.hist(
red_galaxies_double["z"],
bins=50,
histtype="step",
label="Red galaxy distribution from double SF",
color="magenta",
)
plt.hist(
red_galaxies_single["z"],
bins=50,
histtype="step",
label="Red galaxy distribution from single SF",
)
plt.xlabel("Redshift (z)")
plt.ylabel("Number (N)")
plt.legend()
[8]:
<matplotlib.legend.Legend at 0x12f49ab40>
Load DC2 and Diffsky galaxy catalog¶
These catalogs are from 1 degree square sky area.
[16]:
dc2_data_path = os.path.abspath("/Users/sanchez/Devel/DESC/data_public/DC2_data")
difsky_data_path = os.path.abspath("/Users/sanchez/Devel/DESC/data_public/Diffsky_data")
[17]:
with open(os.path.join(dc2_data_path, "dc2_galaxy2_catalog_1deg2.txt"), "rb") as file:
# Use pickle.load() to load the data from the file
dc2_galaxies = pickle.load(file)
with open(os.path.join(dc2_data_path, "dc2_galaxy1_catalog_1deg2.txt"), "rb") as file:
# Use pickle.load() to load the data from the file
dc2_galaxies2 = pickle.load(file)
with open(
os.path.join(difsky_data_path, "diffsky_galaxy_catalog_1deg2.txt"), "rb"
) as file:
# Use pickle.load() to load the data from the file
diffsky_galaxies = pickle.load(file)
with open(
os.path.join(difsky_data_path, "diffsky_galaxy2_catalog_1deg2.txt"), "rb"
) as file:
# Use pickle.load() to load the data from the file
diffsky_galaxies2 = pickle.load(file)
[18]:
dc2_galaxies = Table(dc2_galaxies)
dc2_galaxies = dc2_galaxies[dc2_galaxies["mag_true_i_lsst"] < 30]
dc2_galaxies2 = Table(dc2_galaxies2)
dc2_galaxies2 = dc2_galaxies2[dc2_galaxies2["mag_true_i_lsst"] < 30]
diffsky_galaxies = Table(diffsky_galaxies)
diffsky_galaxies = diffsky_galaxies[diffsky_galaxies["mag_true_i_lsst"] < 30]
diffsky_galaxies2 = Table(diffsky_galaxies2)
diffsky_galaxies2 = diffsky_galaxies2[diffsky_galaxies2["mag_true_i_lsst"] < 30]
[19]:
print(
min(diffsky_galaxies["redshift"]),
max(diffsky_galaxies["redshift"]),
min(diffsky_galaxies["mag_true_i_lsst"]),
max(diffsky_galaxies["mag_true_i_lsst"]),
)
0.015004985975324292 3.0784268934021073 14.266190839010237 29.999986591958766
[20]:
print(
min(dc2_galaxies["redshift"]),
max(dc2_galaxies["redshift"]),
min(dc2_galaxies["mag_true_i_lsst"]),
max(dc2_galaxies["mag_true_i_lsst"]),
)
print(
min(double_total["z"]),
max(double_total["z"]),
min(double_total["mag_i"]),
max(double_total["mag_i"]),
)
0.012666132057165269 3.0940996130362075 13.834526 29.999998
0.0029502817793644527 3.009994291104664 14.295469201166938 29.99999790515627

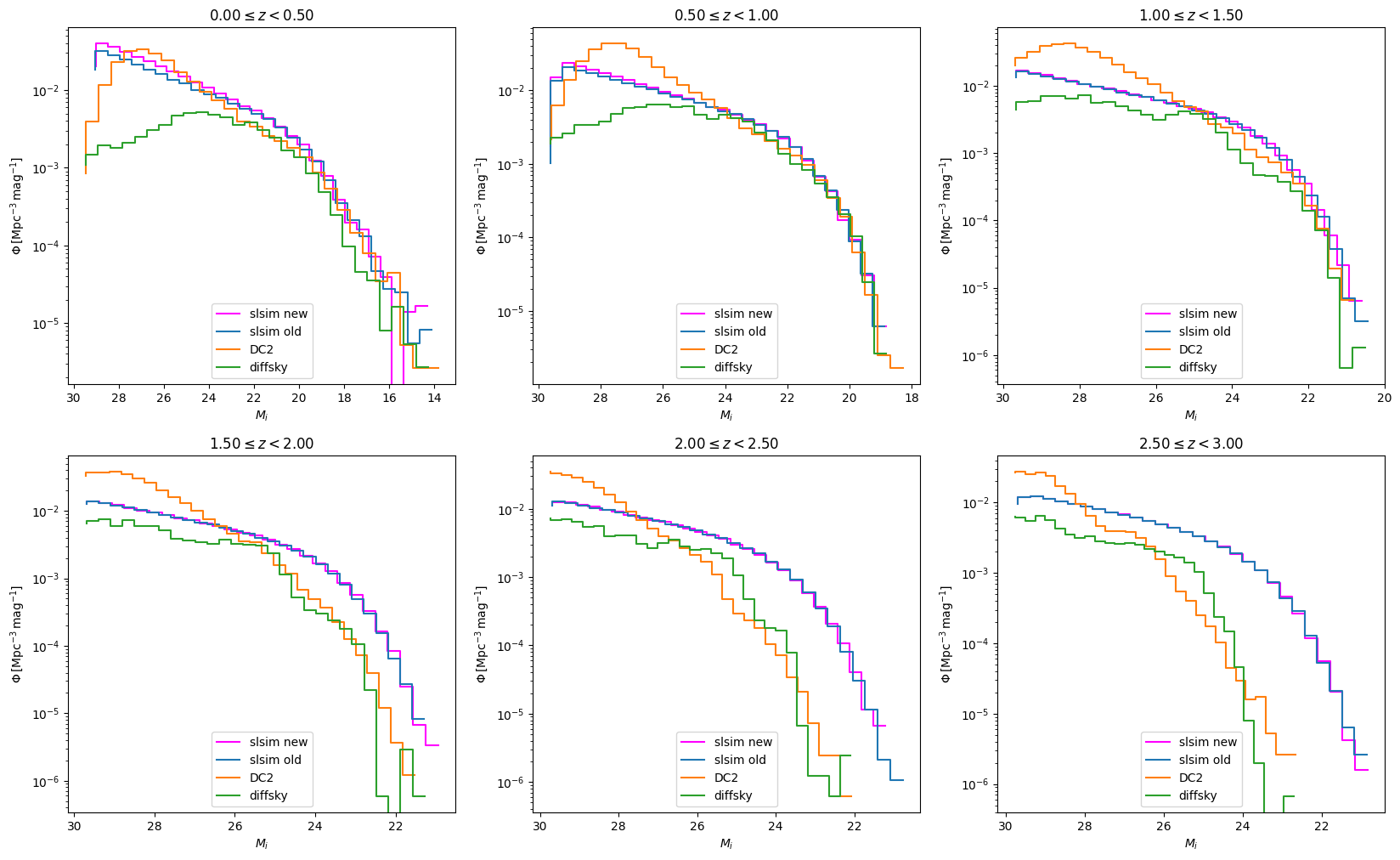

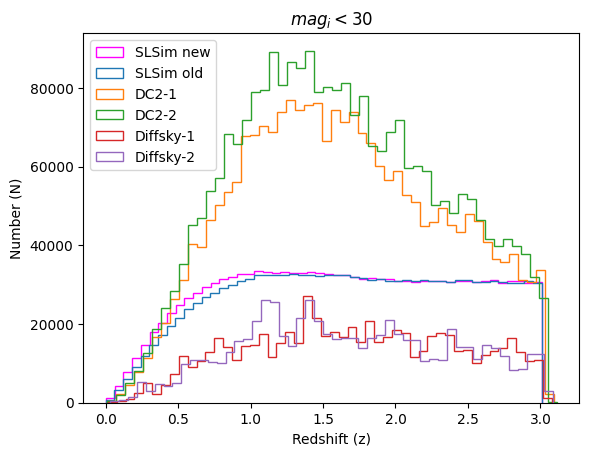

Comparision of total galaxy distribution¶
[21]:
m_min = 0
m_max = 60
plt.hist(
double_total[(double_total["mag_i"] > m_min) & (double_total["mag_i"] < m_max)][
"z"
],
bins=50,
density=False,
histtype="step",
label="SLSim new",
color="magenta",
cumulative=False,
)
plt.hist(
single_total[(single_total["mag_i"] > m_min) & (single_total["mag_i"] < m_max)][
"z"
],
bins=50,
density=False,
histtype="step",
label="SLSim old",
cumulative=False,
)
plt.hist(
dc2_galaxies[
(dc2_galaxies["mag_true_i_lsst"] > m_min)
& (dc2_galaxies["mag_true_i_lsst"] < m_max)
]["redshift"],
bins=50,
density=False,
histtype="step",
label="DC2-1",
cumulative=False,
)
plt.hist(
dc2_galaxies2[
(dc2_galaxies2["mag_true_i_lsst"] > m_min)
& (dc2_galaxies2["mag_true_i_lsst"] < m_max)
]["redshift"],
bins=50,
density=False,
histtype="step",
label="DC2-2",
cumulative=False,
)
plt.hist(
diffsky_galaxies[
(diffsky_galaxies["mag_true_i_lsst"] > m_min)
& (diffsky_galaxies["mag_true_i_lsst"] < m_max)
]["redshift"],
bins=50,
density=False,
histtype="step",
label="Diffsky-1",
cumulative=False,
)
plt.hist(
diffsky_galaxies2[
(diffsky_galaxies2["mag_true_i_lsst"] > m_min)
& (diffsky_galaxies2["mag_true_i_lsst"] < m_max)
]["redshift"],
bins=50,
density=False,
histtype="step",
label="Diffsky-2",
cumulative=False,
)
plt.xlabel("Redshift (z)")
plt.ylabel("Number (N)")
plt.legend(loc="upper left", fontsize=10)
plt.title(r"$mag_i < 30$")
[21]:
Text(0.5, 1.0, '$mag_i < 30$')

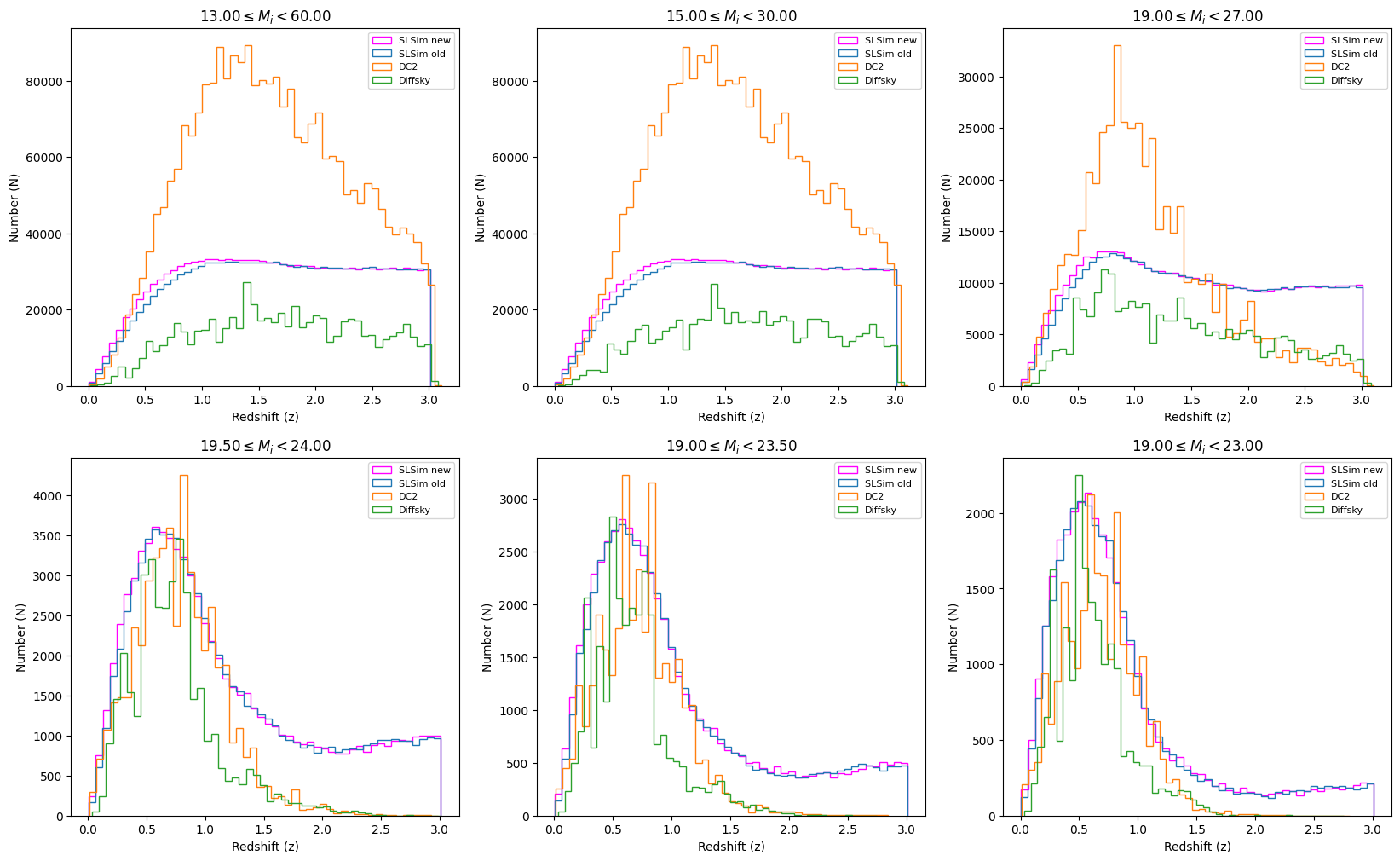

[22]:
# m_min = 0
# m_max = 60
fig, ((ax1, ax2, ax3), (ax4, ax5, ax6)) = plt.subplots(
nrows=2, ncols=3, figsize=(20, 12)
)
m_slices = ((13, 60), (15, 30), (19, 27), (19.5, 24), (19, 23.5), (19, 23))
for ax, (m_min, m_max) in zip([ax1, ax2, ax3, ax4, ax5, ax6], m_slices):
ax.hist(
double_total[(double_total["mag_i"] > m_min) & (double_total["mag_i"] < m_max)][
"z"
],
bins=50,
density=False,
histtype="step",
label="SLSim new",
color="magenta",
cumulative=False,
)
ax.hist(
single_total[(single_total["mag_i"] > m_min) & (single_total["mag_i"] < m_max)][
"z"
],
bins=50,
density=False,
histtype="step",
label="SLSim old",
cumulative=False,
)
"""ax.hist(dc2_galaxies[(dc2_galaxies["mag_true_i_lsst"]>m_min) &
(dc2_galaxies["mag_true_i_lsst"]<m_max)]["redshift"],
bins=50, density=False, histtype="step",
label="DC2-1", cumulative=False)"""
ax.hist(
dc2_galaxies2[
(dc2_galaxies2["mag_true_i_lsst"] > m_min)
& (dc2_galaxies2["mag_true_i_lsst"] < m_max)
]["redshift"],
bins=50,
density=False,
histtype="step",
label="DC2",
cumulative=False,
)
ax.hist(
diffsky_galaxies[
(diffsky_galaxies["mag_true_i_lsst"] > m_min)
& (diffsky_galaxies["mag_true_i_lsst"] < m_max)
]["redshift"],
bins=50,
density=False,
histtype="step",
label="Diffsky",
cumulative=False,
)
"""ax.hist(diffsky_galaxies2[(diffsky_galaxies2["mag_true_i_lsst"]>m_min) &
(diffsky_galaxies2["mag_true_i_lsst"]<m_max)]["redshift"],
bins=50, density=False, histtype="step",
label="Diffsky-2", cumulative=False)"""
ax.set_xlabel("Redshift (z)")
ax.set_ylabel("Number (N)")
ax.legend(fontsize=8)
ax.set_title(r"${:.2f} \leq M_i < {:.2f}$".format(m_min, m_max))

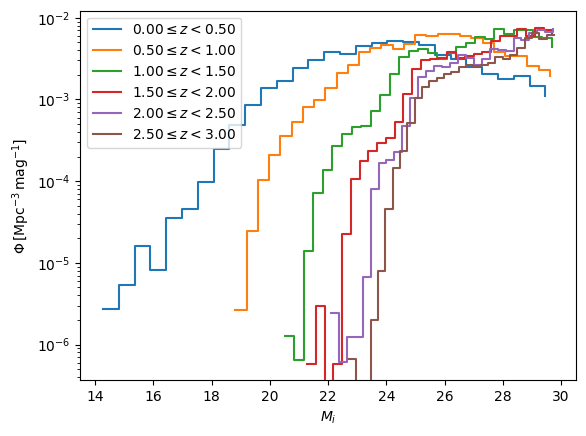

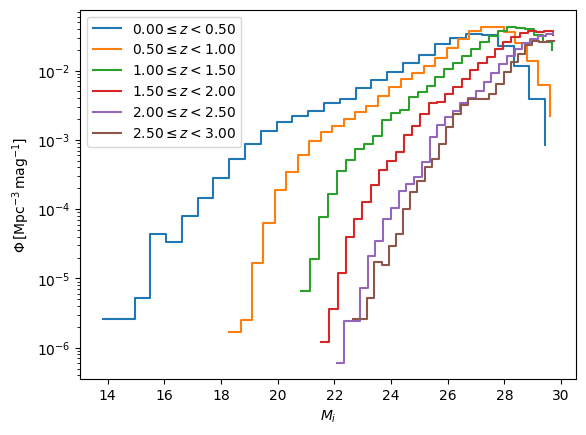

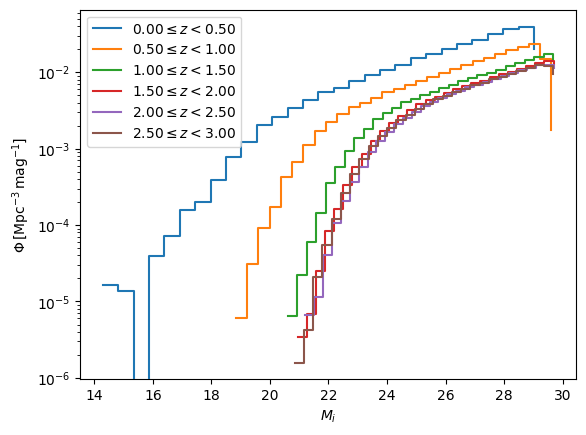

Comparision of SLSim, SC2, and Diffsky galaxy¶
luminosity functions¶
[23]:
z_range = np.linspace(0.0, 3.01, 100)
## These are the parameters used in the lsst-like_new.yml file for 1st schechter
# function for red galaxies.
# slsim new
redshift, magnitude = double_total["z"], double_total["mag_i"]
# slsim old
redshift2, magnitude2 = single_total["z"], single_total["mag_i"]
# dc2
redshift3, magnitude3 = dc2_galaxies["redshift"], dc2_galaxies["mag_true_i_lsst"]
# diffsky
redshift4, magnitude4 = (
diffsky_galaxies["redshift"],
diffsky_galaxies["mag_true_i_lsst"],
)
fig, ((ax1, ax2, ax3), (ax4, ax5, ax6)) = plt.subplots(
nrows=2, ncols=3, figsize=(20, 12)
)
# bins = np.linspace(-24.84408295574346, -14, 40)
# bins2 = np.linspace(-19.1724664526037, -14, 30)
z_slices = ((0.0, 0.5), (0.5, 1), (1, 1.5), (1.5, 2), (2, 2.5), (2.5, 3))
for ax, (z_min, z_max) in zip([ax1, ax2, ax3, ax4, ax5, ax6], z_slices):
# Redshift grid
z = np.linspace(z_min, z_max, 100)
# SkyPy simulated galaxies
z_mask = np.logical_and(redshift >= z_min, redshift < z_max)
magnitude_bin = magnitude[z_mask]
bins = np.linspace(min(magnitude_bin), max(magnitude_bin), 30)
dV_dz = (cosmology.differential_comoving_volume(z) * sky_area).to_value("Mpc3")
dV = np.trapz(dV_dz, z)
dM = (np.max(bins) - np.min(bins)) / (np.size(bins) - 1)
phi_slsim_new = np.histogram(magnitude[z_mask], bins=bins)[0] / dV / dM
z_mask2 = np.logical_and(redshift2 >= z_min, redshift2 < z_max)
magnitude_bin2 = magnitude2[z_mask2]
bins2 = np.linspace(min(magnitude_bin2), max(magnitude_bin2), 30)
dV_dz2 = (cosmology.differential_comoving_volume(z) * sky_area).to_value("Mpc3")
dV2 = np.trapz(dV_dz2, z)
dM2 = (np.max(bins2) - np.min(bins2)) / (np.size(bins2) - 1)
phi_slsim_old = np.histogram(magnitude2[z_mask2], bins=bins2)[0] / dV2 / dM2
z_mask3 = np.logical_and(redshift3 >= z_min, redshift3 < z_max)
magnitude_bin3 = magnitude3[z_mask3]
bins3 = np.linspace(min(magnitude_bin3), max(magnitude_bin3), 30)
dV_dz3 = (cosmology.differential_comoving_volume(z) * sky_area).to_value("Mpc3")
dV3 = np.trapz(dV_dz3, z)
dM3 = (np.max(bins3) - np.min(bins3)) / (np.size(bins3) - 1)
phi_dc2 = np.histogram(magnitude3[z_mask3], bins=bins3)[0] / dV3 / dM3
z_mask4 = np.logical_and(redshift4 >= z_min, redshift4 < z_max)
magnitude_bin4 = magnitude4[z_mask4]
bins4 = np.linspace(min(magnitude_bin4), max(magnitude_bin4), 30)
dV_dz4 = (cosmology.differential_comoving_volume(z) * sky_area).to_value("Mpc3")
dV4 = np.trapz(dV_dz4, z)
dM4 = (np.max(bins4) - np.min(bins4)) / (np.size(bins4) - 1)
phi_diffsky = np.histogram(magnitude4[z_mask4], bins=bins4)[0] / dV4 / dM4
# Plotting
ax.step(
bins[:-1],
phi_slsim_new,
where="post",
label="slsim new",
color="magenta",
zorder=3,
)
ax.step(bins2[:-1], phi_slsim_old, where="post", label="slsim old", zorder=3)
ax.step(bins3[:-1], phi_dc2, where="post", label="DC2", zorder=3)
ax.step(bins4[:-1], phi_diffsky, where="post", label="diffsky", zorder=3)
ax.set_title(r"${:.2f} \leq z < {:.2f}$".format(z_min, z_max))
ax.set_xlabel(r"$M_i$")
ax.set_ylabel(r"$\Phi \, [\mathrm{Mpc}^{-3} \, \mathrm{mag}^{-1}]$")
ax.set_yscale("log")
# ax.set_xlim([-14, -24])
# ax.set_ylim([min(magnitude_bin), None])
ax.legend(loc="lower center")
ax.invert_xaxis()
plt.show()
SLSim galaxy luminosity functions in different¶
redshift bins.¶
[24]:
fig, ax = plt.subplots()
for z_min, z_max in z_slices:
# Redshift grid
z = np.linspace(z_min, z_max, 100)
# SkyPy simulated galaxies
z_mask = np.logical_and(redshift >= z_min, redshift < z_max)
magnitude_bin = magnitude[z_mask]
bins = np.linspace(min(magnitude_bin), max(magnitude_bin), 30)
dV_dz = (cosmology.differential_comoving_volume(z) * sky_area).to_value("Mpc3")
dV = np.trapz(dV_dz, z)
dM = (np.max(bins) - np.min(bins)) / (np.size(bins) - 1)
phi_slsim_new = np.histogram(magnitude[z_mask], bins=bins)[0] / dV / dM
# Plotting
ax.step(
bins[:-1],
phi_slsim_new,
where="post",
label=r"${:.2f} \leq z < {:.2f}$".format(z_min, z_max),
zorder=3,
)
ax.set_xlabel(r"$M_i$")
ax.set_ylabel(r"$\Phi \, [\mathrm{Mpc}^{-3} \, \mathrm{mag}^{-1}]$")
ax.set_yscale("log")
# ax.set_xlim([-14, -24])
# ax.set_ylim([min(magnitude_bin), None])
ax.legend(loc="upper left")
# Invert the x-axis
# plt.show()
Diffsky galaxy luminosity functions in different¶
redshift bins.¶
[25]:
fig, ax = plt.subplots()
for z_min, z_max in z_slices:
# Redshift grid
z = np.linspace(z_min, z_max, 100)
# SkyPy simulated galaxies
z_mask4 = np.logical_and(redshift4 >= z_min, redshift4 < z_max)
magnitude_bin4 = magnitude4[z_mask4]
bins4 = np.linspace(min(magnitude_bin4), max(magnitude_bin4), 30)
dV_dz4 = (cosmology.differential_comoving_volume(z) * sky_area).to_value("Mpc3")
dV4 = np.trapz(dV_dz4, z)
dM4 = (np.max(bins4) - np.min(bins4)) / (np.size(bins4) - 1)
phi_diffsky = np.histogram(magnitude4[z_mask4], bins=bins4)[0] / dV4 / dM4
# Plotting
ax.step(
bins4[:-1],
phi_diffsky,
where="post",
label=r"${:.2f} \leq z < {:.2f}$".format(z_min, z_max),
zorder=3,
)
ax.set_xlabel(r"$M_i$")
ax.set_ylabel(r"$\Phi \, [\mathrm{Mpc}^{-3} \, \mathrm{mag}^{-1}]$")
ax.set_yscale("log")
# ax.set_xlim([-14, -24])
# ax.set_ylim([min(magnitude_bin), None])
ax.legend(loc="upper left")
plt.show()
DC2 galaxy luminosity functions in different¶
redshift bins.¶
[26]:
fig, ax = plt.subplots()
for z_min, z_max in z_slices:
# Redshift grid
z = np.linspace(z_min, z_max, 100)
# SkyPy simulated galaxies
z_mask3 = np.logical_and(redshift3 >= z_min, redshift3 < z_max)
magnitude_bin3 = magnitude3[z_mask3]
bins3 = np.linspace(min(magnitude_bin3), max(magnitude_bin3), 30)
dV_dz3 = (cosmology.differential_comoving_volume(z) * sky_area).to_value("Mpc3")
dV3 = np.trapz(dV_dz3, z)
dM3 = (np.max(bins3) - np.min(bins3)) / (np.size(bins3) - 1)
phi_dc2 = np.histogram(magnitude3[z_mask3], bins=bins3)[0] / dV3 / dM3
# Plotting
ax.step(
bins3[:-1],
phi_dc2,
where="post",
label=r"${:.2f} \leq z < {:.2f}$".format(z_min, z_max),
zorder=3,
)
ax.set_xlabel(r"$M_i$")
ax.set_ylabel(r"$\Phi \, [\mathrm{Mpc}^{-3} \, \mathrm{mag}^{-1}]$")
ax.set_yscale("log")
# ax.set_xlim([-14, -24])
# ax.set_ylim([min(magnitude_bin), None])
ax.legend(loc="upper left")
plt.show()
[27]:
path = os.getcwd()
new_path = path.replace("notebooks/validation_notebooks", "tests/TestData/")
